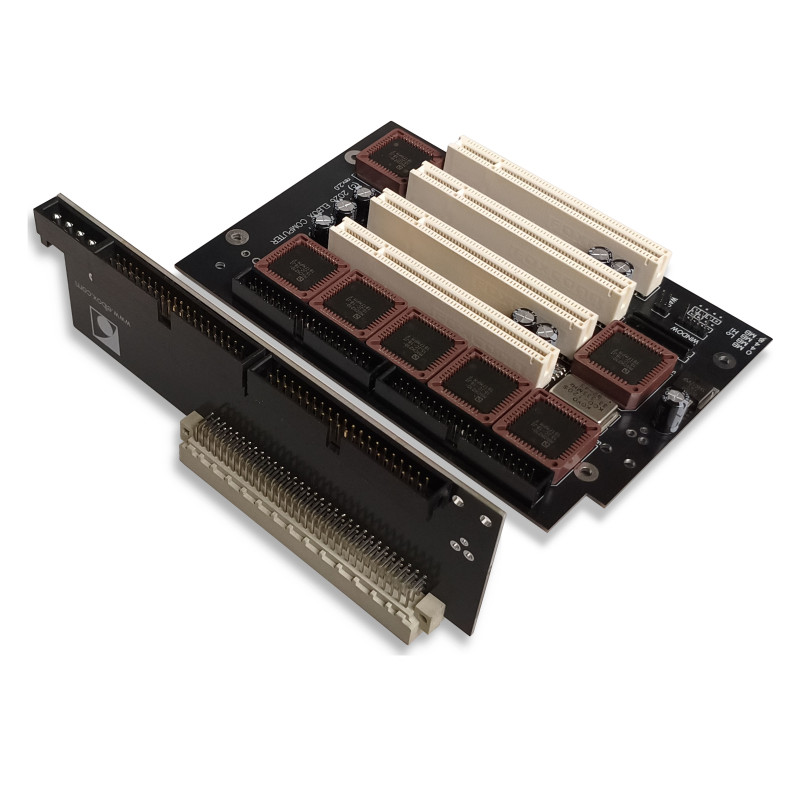

Mediator PCI 1200 ZIV black

Busboard with four PCI slots for Amiga 1200 with ZIV busboard.

The Mediator PCI ZIV busboard is designed to enable expansion of Z-IV busboard equipped Amiga 1200 with a wide range of high-performance, low-cost PCI cards.

Features:
- 4 PCI slots (PCI 2.2 compatible)
- 66/33MHz PCI clock (transfer rate up to 264MB/s)
- 32-bit PCI datapath
- 4GB PCI memory space
- Busmastering/DMA in all PCI slots
- SDRAM/SGRAM of PCI gfx card as a DMA buffer
- Address and data parity control support
- Interrupt controller (4 lines to each PCI card)
- Compatibility with 68030/040/060 and PPC turbo cards
- Simultaneous operation of up to four PCI, one Z-IV and up to five Zorro II cards

Software:
- 2D graphic drivers for: Voodoo5, Voodoo4, Voodoo3, Voodoo Banshee,
- S3 Virge and S3 Virge DX PCI graphic cards
- Warp 3D drivers working with Voodoo5, Voodoo4 and Voodoo3 graphic cards
- TV tuner drivers for: most of available PCI TV tuners (over 100 models supported)
- AHI sound drivers for: Sound Blaster 4.1 Digital, Sound Blaster 128 and
- ForteMedia FM801-based sound cards (e.g. Terratec 512i Digital)
- USB drivers for the Poseidon stack for: Spider and Spider II USB 2.0 cards
- Network Sana-2 drivers for: Fast Ethernet 100Mbps PCI cards
- Network Sana-2 drivers for: Ethernet 10Mbps PCI cards

Current info about supported PCI cards is available in the Mediator Driver Guide.

Installation manual.

Package contents:
- Mediator PCI ZIV busboard (black version with 3.3V rail)
- Mediator Multimedia CD
- User's Manual

This product is covered by 2-year warranty and free Elbox Technical Support.


For more info about older version of this product see Mediator PCI ZIV page at www.elbox.com.
